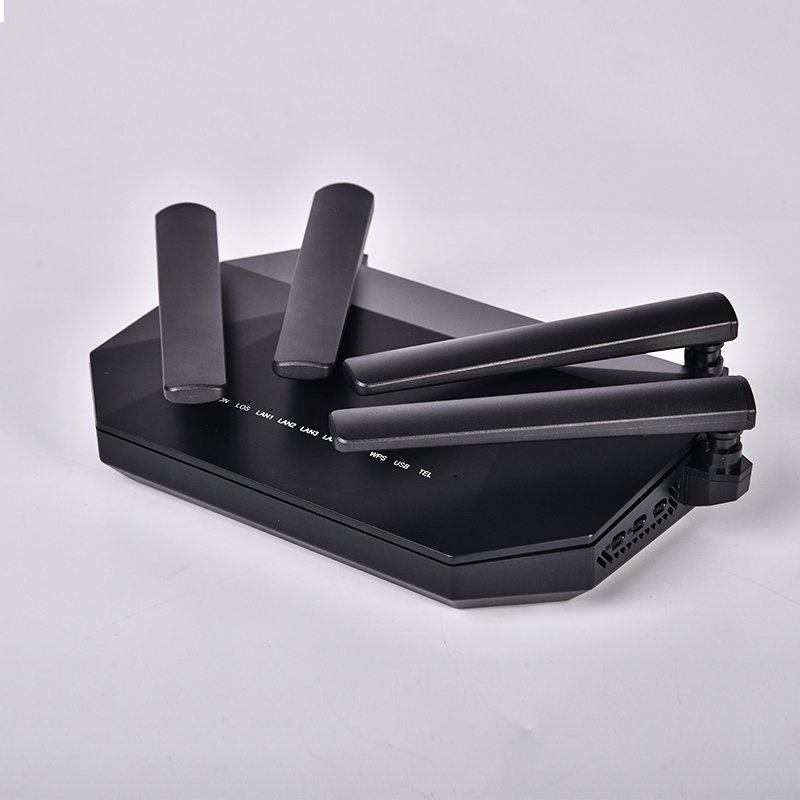

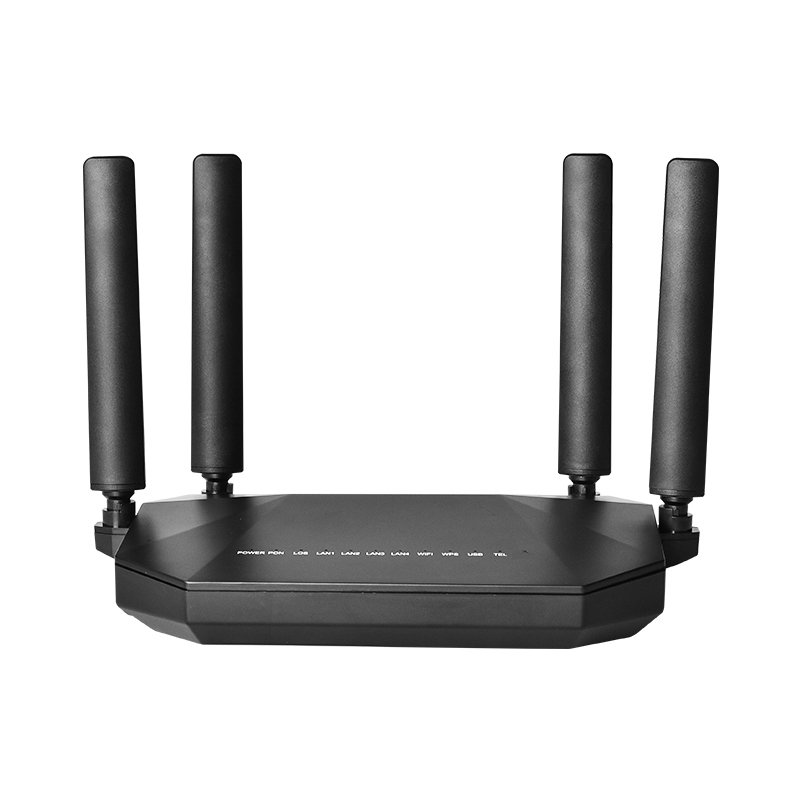

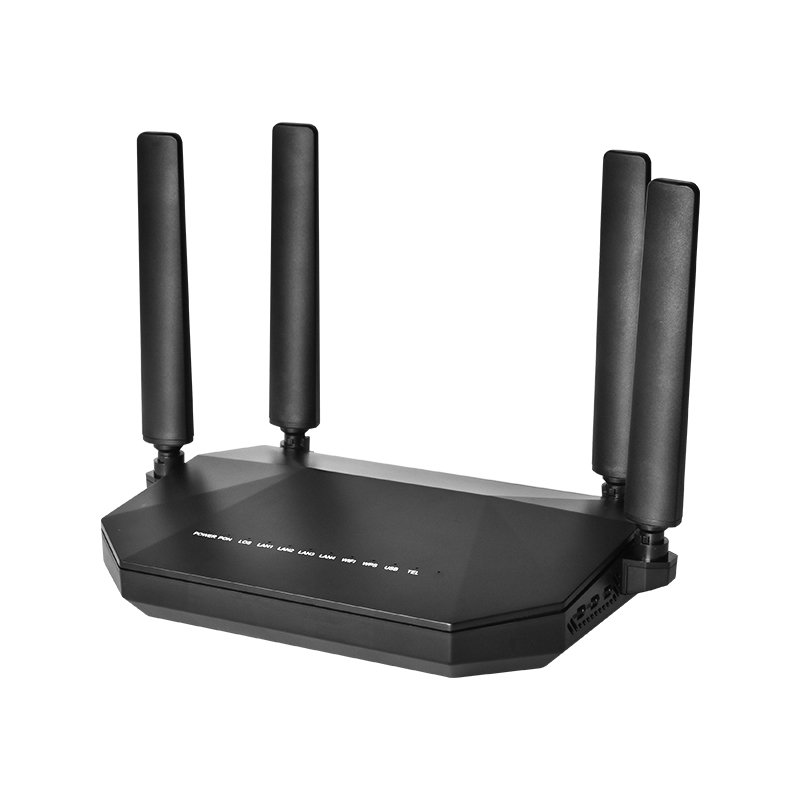

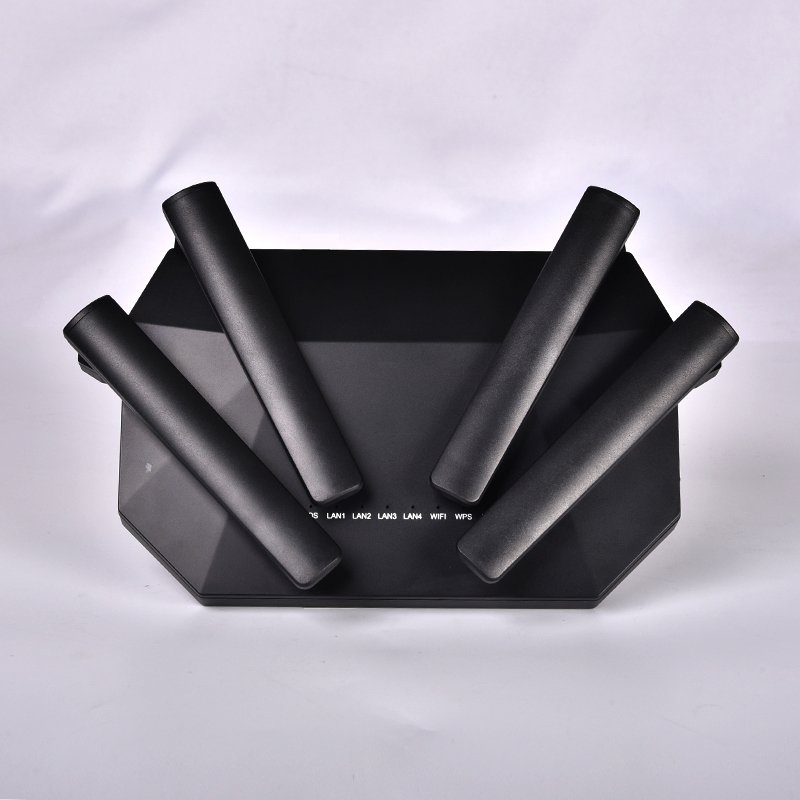

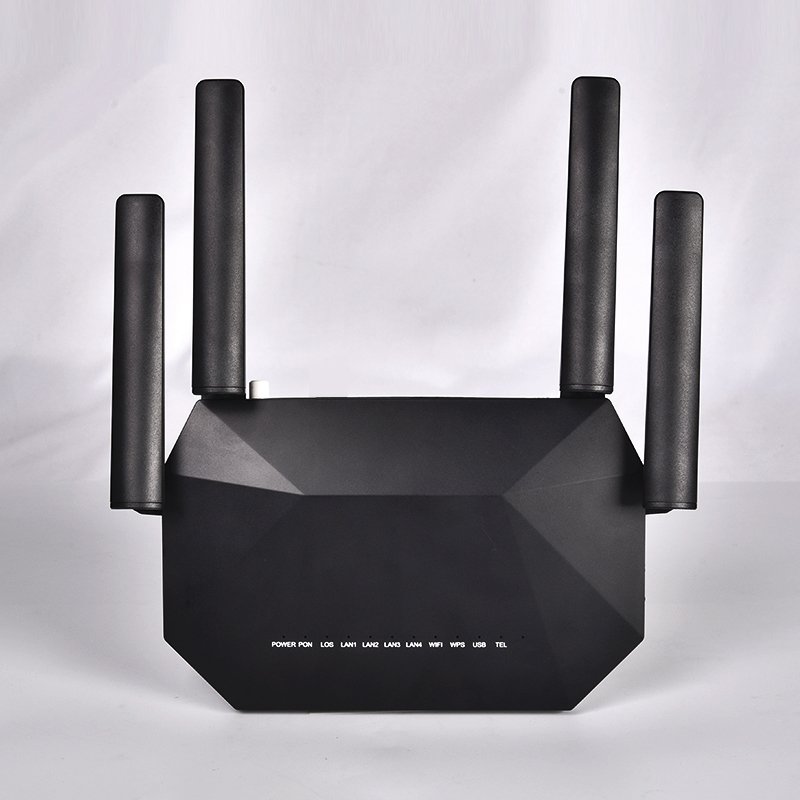

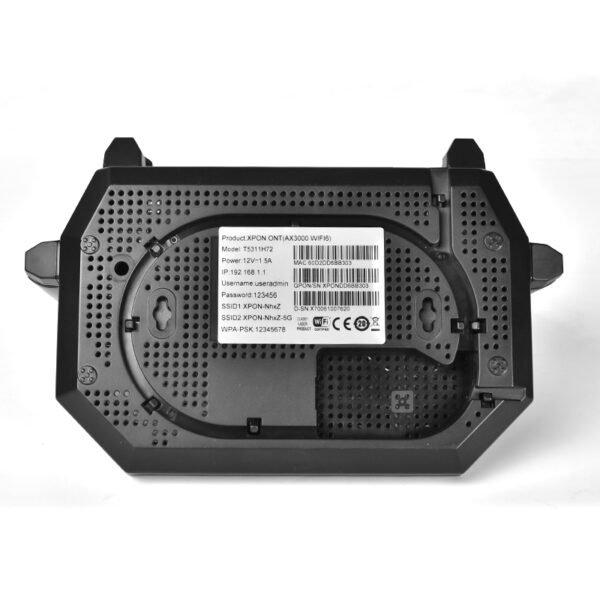

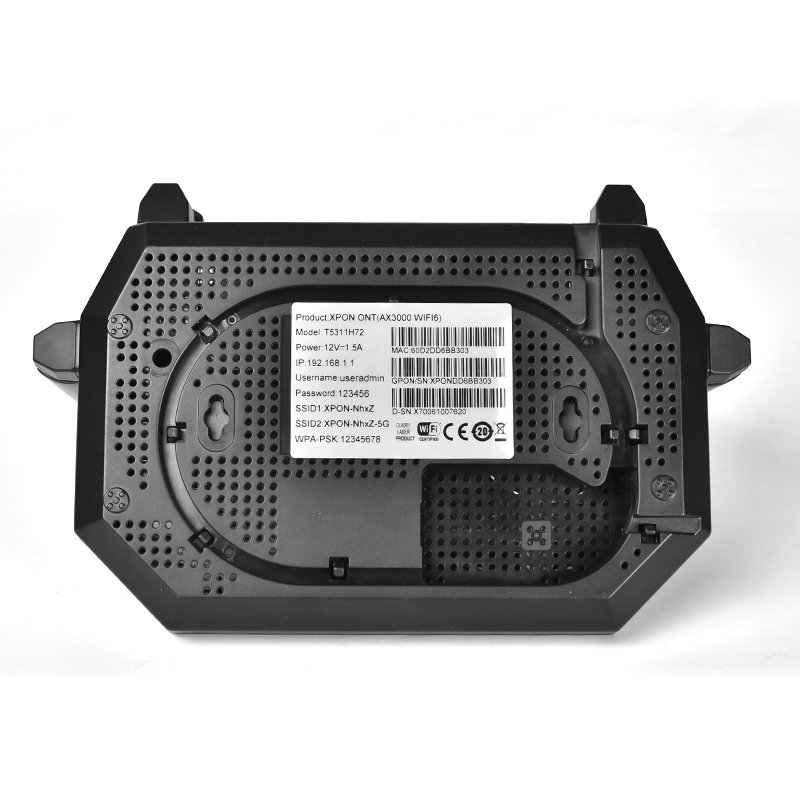

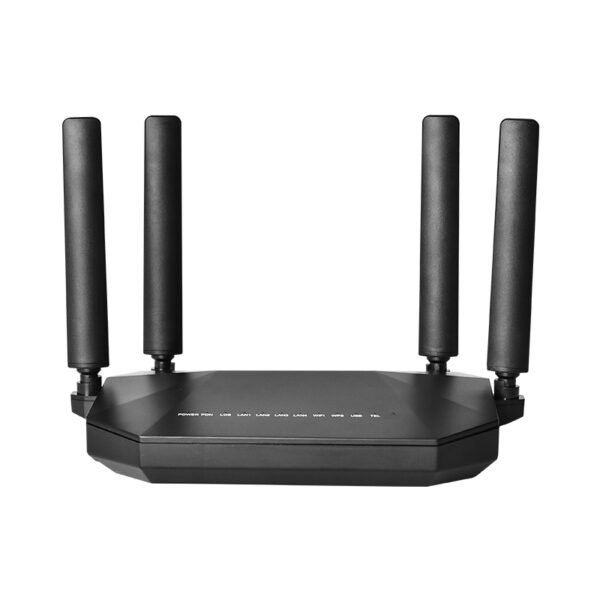

T5311H72 xPON+4GE+1TEL+WiFi6 AX3000 +USB3.0 XPON ONU

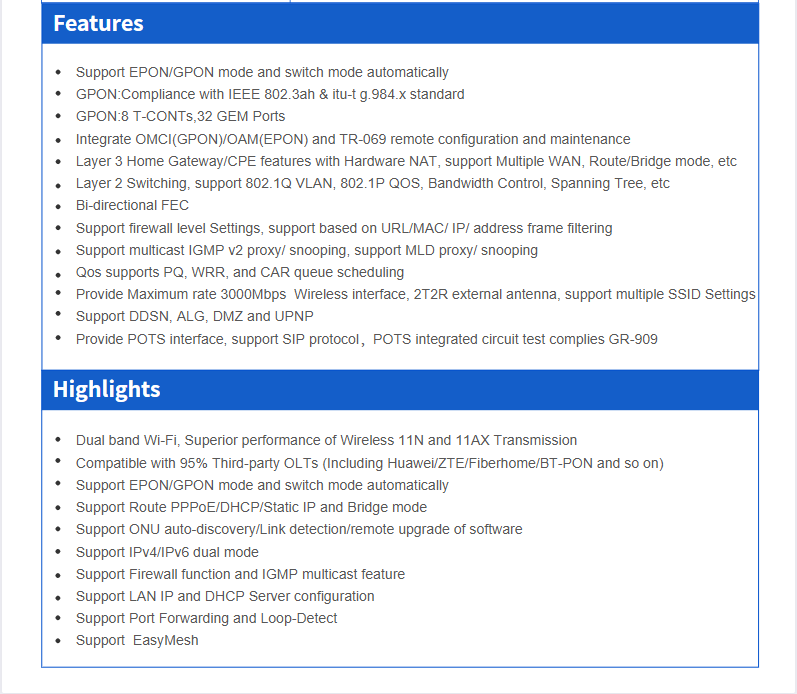

Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Bi-directional FEC
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide Maximum rate 3000Mbps Wireless interface, 2T2R external antenna, support multiple SSID Settings
Support DDSN, ALG, DMZ and UPNP
Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909
Description

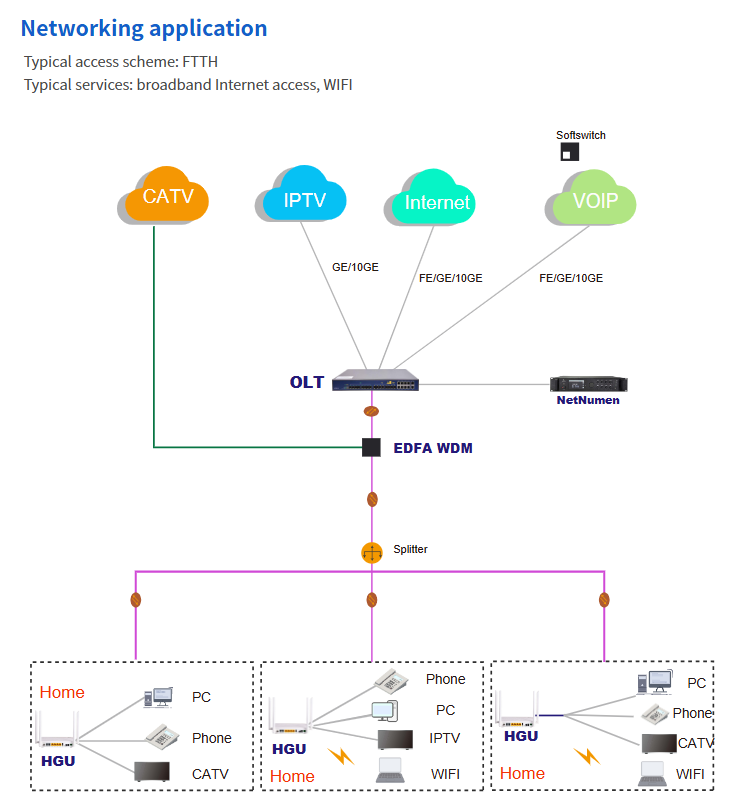

T5311H72 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various oper-ators.T5311H72 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
