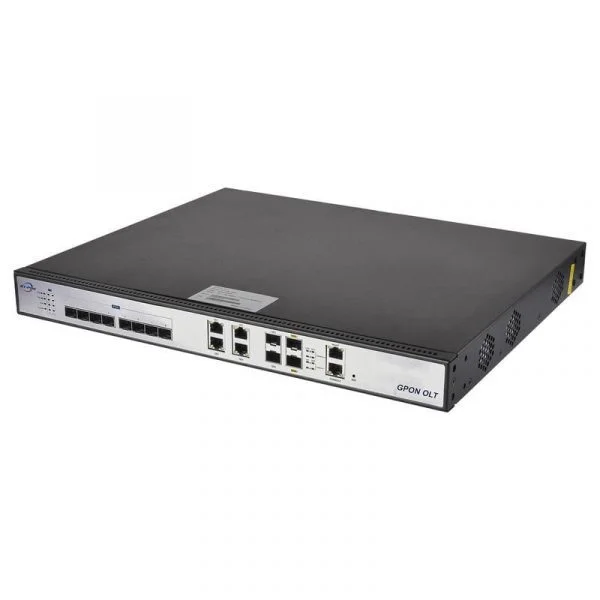

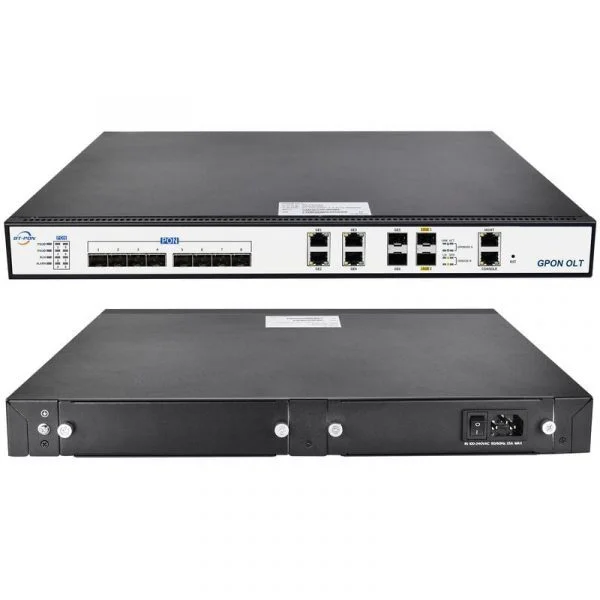

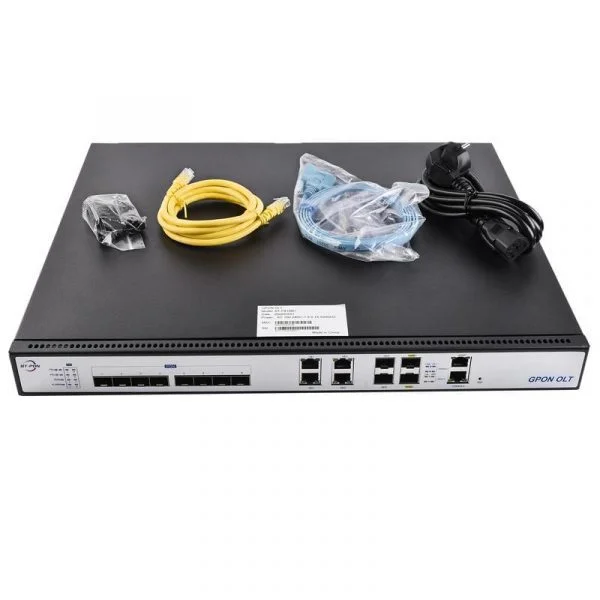

Name: OLT GPON de 8 puertos BT-P8108H | BT-PON
Brand: BT-PON

BT-P8108H OLT (8 Port GPON OLT BT-P8108H) es un equipo OLT GPON compacto 1U de desarrollo propio, que cumple los requisitos de ITU-T G.984/G.988 y los estándares relativos de China Telecom/Unicom GPON, y que posee una capacidad de acceso GPON superior, una fiabilidad de clase portadora y una función de seguridad completa. Puede satisfacer los requisitos de acceso de fibra óptica de larga distancia gracias a su excelente capacidad de gestión, mantenimiento y supervisión, sus abundantes características de servicio y su modo de red flexible. BT-P8108H puede utilizarse con el sistema de gestión de red NMS2000 para proporcionar a los usuarios la solución perfecta.

BT-P8108H OLT proporciona 8 * puertos GPON de bajada, 4 * puertos GE ETH de subida, 2 * puertos GE SFP de subida y 2 * puertos 10G SFP+ de subida. Relación de división de hasta 1:128 para hasta 1024 usuarios GPON. El diseño de caja de pizza 1U es para una fácil instalación, mantenimiento
y ahorro de espacio. BT-P8108H es adecuado para Broadcast tres en uno, red de videovigilancia, LAN empresarial, Internet de las cosas, etc.

Product Specifications
Network interface
GPON interface	8 x GPON (2.5/1.25 Gbps)
10GE Ethernet	2 x 10GE SFP+
1GE Ethernet	4 x RJ-45 + 2 x SFP+
PON interface
GPON	ITU-TG.984.x standard
Local Management interface
Console	RJ-45 EIA/TIA-232 Console management port
MGMT	1000BASE-T out-band management port
Performance
Switching Capacity	82Gbps
Split ratio	1:128
Maximum ONU quantity	4096 GEM port-ids, 1024 T-CONT, 1024 ONT
Power Supply and Consumption
Power Adaptor	AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design	Pluggable double power supply, double AC, double DC and AC+DC
Consumption	＜70 W
Environmental conditions
Storage	temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation	temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions	440mm×362mm× 44mm(W * D *H)
Weight	4.95KG
Ethernet switching (L2) features
VLAN	4K VLAN entries
	Port-based QinQ and Selective QinQ (StackVLAN)
	Port-based/MAC-based/IP subnet-based VLA
Spanning tree	IEEE 802.1x STP/RSTP/MSTP
	ONU remote loop detection
MAC	MAC Black Hole
	Port MAC limit
	64K MAC address
Port	Bi-direction bandwidth control
	Port mirroring and traffic mirroring
Service features
Multicast	IGMPv1/v2/v3
	IGMP Snooping/Proxy
	IGMP filtering
QoS	Base on port or user-defined rate limitation
	Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
	Base on port or user-defined high grade queue scheduling
	Priority queues and scheduler of SP, WRR and SP+WRR
	Congestion avoidance system
Routing	BGP/MPLS/RIP
Security features
User security	Anti-ARP-spoofing deceive defend
	Anti-ARP-flooding flooding attack automatic control
	IP，MAC，port and VLAN binding
	Port isolation
Device security	Defend DOS attack
	Security IP login through Telnet
	Hierarchical management and password protection of users
Network security	IP address、VLAN ID、MAC address and port manual binding
	Port broadcast /multi broadcast restrain
	Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate
	Dynamic ARP table-based binding
	DHCP Option82 and PPPoE+ upload user’s physical location
Network management	Command-line interface（CLI）, Console, Telnet and WEB configuration
	RMON (Remote Monitoring)1/2/3/9 groups of MIB
	System configuration with SNMPv1/v2/v3
	NTP(Network Time Protocol)
	NMS2000 network management
